·140 or 180lm/W
·Model No.:TUN-J1-50

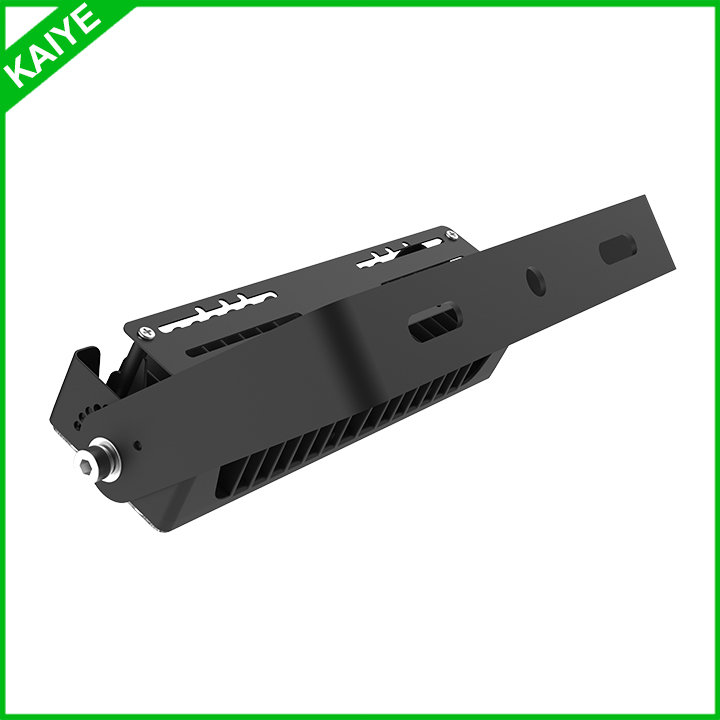

·The holder can be rotated 300° to adapt to different installation angles.
·Offering 5 years warranty.
·IP65 waterproof
·More power available: 50W~250W
·140 or 180lm/W
·Model No.:TUN-J1-50
·The holder can be rotated 300° to adapt to different installation angles.
·Offering 5 years warranty.
·IP65 waterproof
·More power available: 50W~250W
Electrical characteristics
High efficiency LED Driver, the wide range input voltage AC90 – 265 V (50 – 60 Hz).
Top brand LED high luminous efficiency and long life.
The holder can be rotated 300° to adapt to different installation angles.
Excellent optical design, greatly improved the light utilization and evenness.
IP65 waterproof for indoor and outdoor lighting
Housing made of aluminium
Possibility to change the inclination from 0° up to 300° in increments of 10°.
As a standard equipped with a 0,5 m connecting cable, or longer cable upon request.
Anodized finish and dust painted with epoxy paint & thermal treatment to ensure long-term environmental protection against all weather conditions.
All gaskets are made of ozone and UV resistant silicone for IP66 protection.
?
Product Applications
KAIYE LED tunnel & high bay Light series IP65 waterproof can be widely used in outdoor lighting, Buildings lighting, Industrial areas lighting, Parking lot, Schools and etc,and many more applications.
Specification of KAIYE LED street light
Item | Parameter range |
Power: | 50W |
Model No.: | TUN-J1-50 |
Base Type: | Bare |
Input Voltage: | AC90~265V |
Body materials: | Aluminum casting |
LED chips: | SMD3030/SMD5050 |
Beam angle: | 60°, 90°, 90*120°, 40*110°, 80*150° |
Optical efficiency: | >90% |
PFC: | >0.95 |
THD: | <20% |
IP degree: | IP65 |
IK degree: | 10 |
Light Color: | 2700K-7000K |
Color: | Warm white/Natural white/White |
Efficacy: | 140lm/W or 180lm/W * |
Rendering index(CRI): | >70 |
Operation temp: | -25°~45° |
LED lifespan: | 50,000hours |
Holder turn degree: | 90 |
Service | OEM&ODM |
More power available | 50W, 100W, 150W, 200W, 250W |
