·More than 170lm/W
·Model No.:STR-H1-250
·Photocell sensor and dimmable function available.
·The holder can be rotated 90° to adapt to different installation angles.
·Offering 5 years warranty, over 50,000 hours lifetime.
·IP65 waterproof
·More power available: 50W~300W
·More than 170lm/W
·Model No.:STR-H1-250
·Photocell sensor and dimmable function available.
·The holder can be rotated 90° to adapt to different installation angles.
·Offering 5 years warranty, over 50,000 hours lifetime.
·IP65 waterproof
·More power available: 50W~300W
Electrical characteristics
High efficiency LED Driver, the wide range input voltage AC90 – 265 V (50 – 60 Hz).
Top brand LED high luminous efficiency and long life.
Excellent optical design, greatly improved the light utilization and evenness.
Dimming options: Line switch, DALI, 1 – 10 V and autonomous dimming (upon request).
Housing made of aluminium
Top pole or side entry. As a standard equipped with a 60 mm pole connector, 76 mm also available.
Possibility to change the inclination from -0° up to +90° in increments of 10°.
As a standard equipped with a 0,5 m connecting cable, or longer cable upon request.
Anodized finish and dust painted with epoxy paint & thermal treatment to ensure long-term environmental protection against all weather conditions.
All gaskets are made of ozone and UV resistant silicone for IP66 protection.
?
Product Applications
KAIYE LED Street Light series can be widely used in outdoor lighting(Wet location),Excellent for Museums, Art Galleries, Underground parking lot, Buildings,The lawn, Industrial areas, Residential areas, Sidewalks, Parking lot, Schools and etc,and many more applications.

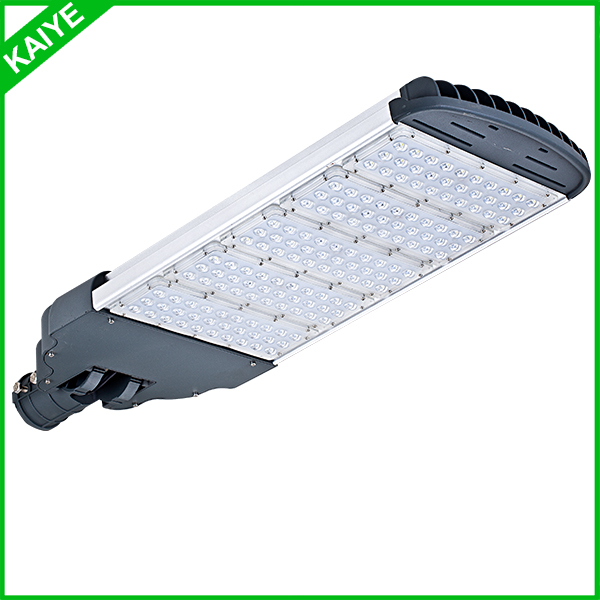

Specification of KAIYE LED street light
Item | Parameter range |
Power: | 250W |
Model No.: | STR-H1-250 |
Size(mm): | 870*310*90 |
Base Type: | Bare |
Input Voltage: | AC90~265V |
Body materials: | Aluminum casting |
LED chips: | SMD3030/SMD5050 |
Beam angle: | 70°x140° * |
Optical efficiency: | >90% |
PFC: | >0.95 |
THD: | <20% |
Light source: | Bridgelux/Sanan |
IP degree: | IP65 |
IK degree: | 10 |
Light Color: | 2700K-7000K |
Color: | Warm white/Natural white/White |
Efficacy: | 150lm/W or 180lm/W * |
Rendering index(CRI): | >70 |
Operation temp: | -25°~45° |
LED lifespan: | 50,000hours |
Holder turn degree: | 90 |
Service | OEM&ODM |
More power available | 50W, 100W, 150W, 200W, 25W, 300W |
